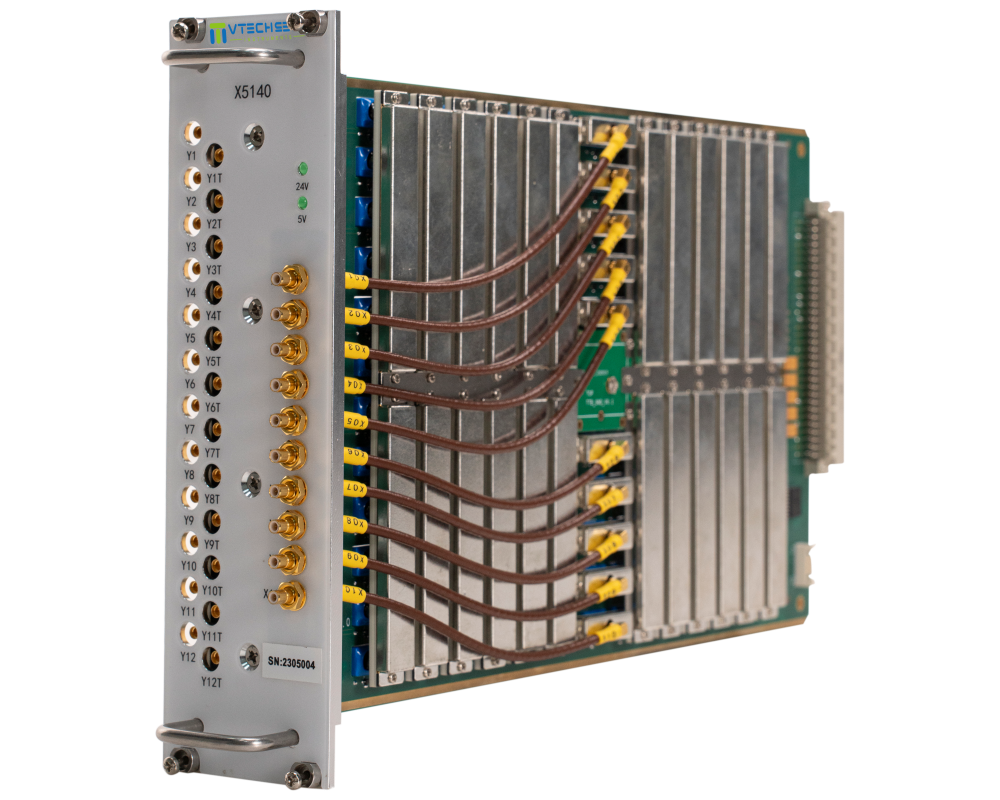

X5140 Non-standard 12x10 Low-leakage Switch Matrix Module

The X5140 is a non-standard low-leakage switch matrix module with a matrix scale of 12x10. The inputs between each board can be cascaded to form a switch matrix of 12x(10xN). The channel offset current is less than 100fA; the maximum load voltage is 200V and the current carrying capacity is 1A. The interfaces of each channel of the X5140 are led out through coaxial connectors on the front panel, and the connector types are MMCX and SMB coaxial connectors. The product features a high channel density and a compact structure.
