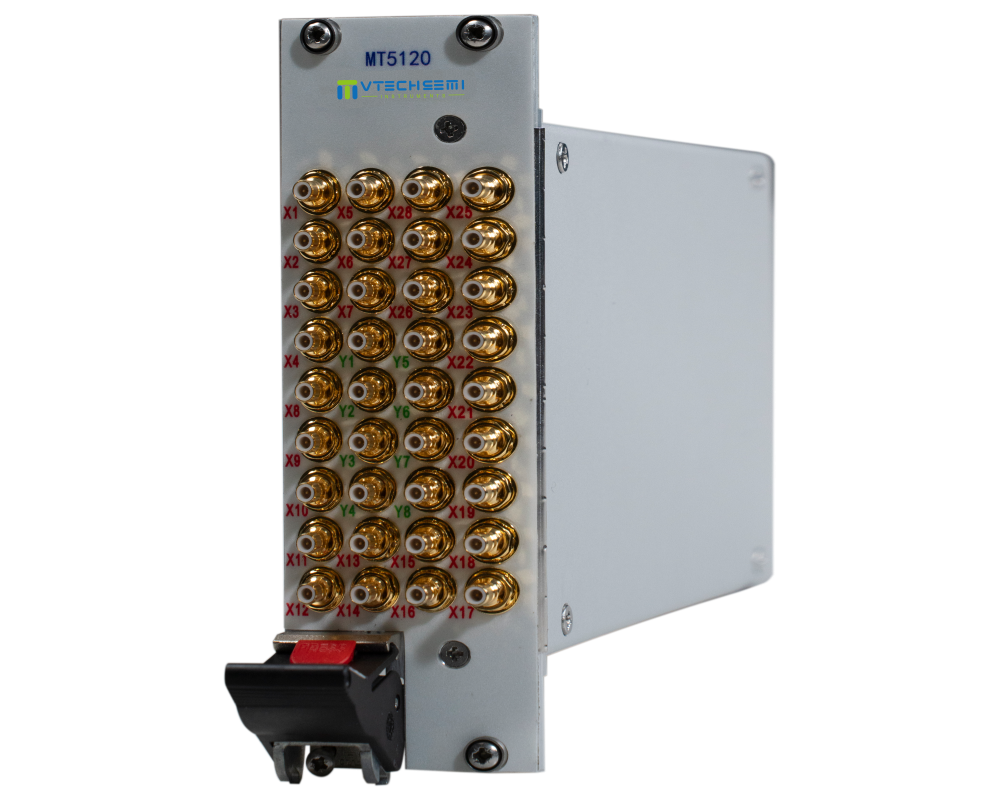

MT5120 8x28 Radio Frequency Switch Matrix Module

The MT5120 is an 8x28 radio frequency switch matrix module in the standard PXI bus form. The row channels are Y1⁓Y8, and the column channels are X1⁓X28. Users can control the isolation switches between each channel in the switch matrix through the host computer software and other means, so as to achieve the connection or disconnection between any row channel and column channel. The channel bandwidth is 150MHz. The product is characterized by high channel density and a compact structure.
