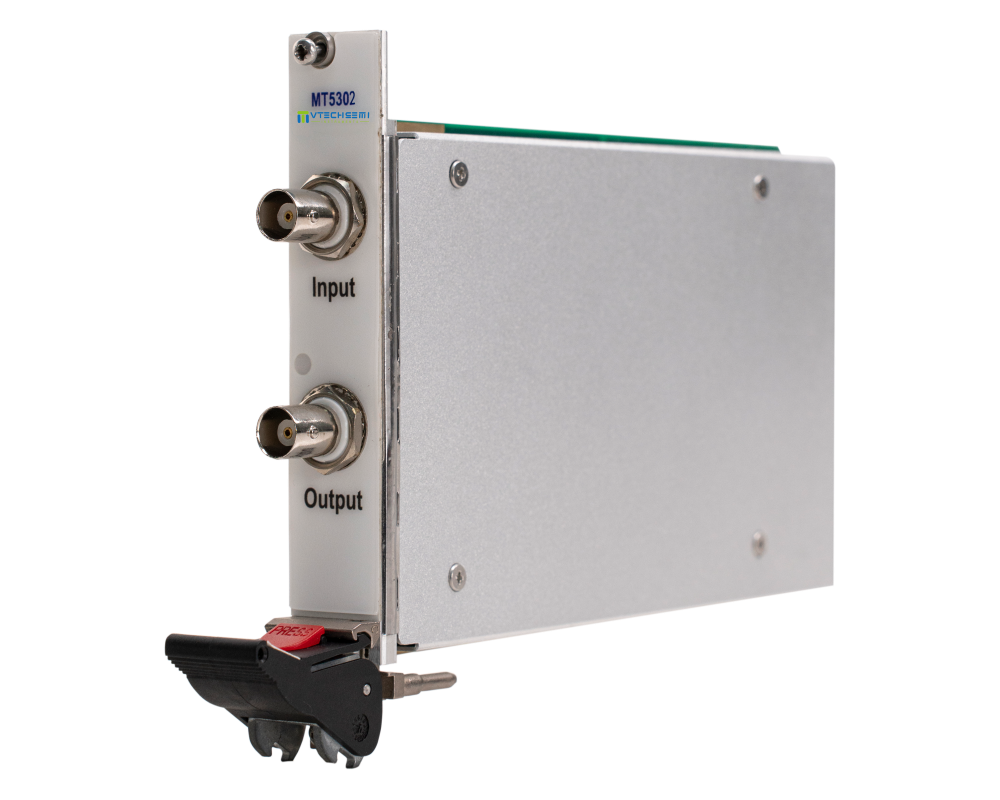

: MT5302 80Vp-p Small-Signal Amplifier

The MT5302 is a high-gain, low-distortion signal amplifier with a standard 3U - 4HP form factor. It allows users to customize the input and output impedances, amplification factor, and choose between in-phase or anti-phase amplification modes.

Apply Manual

Characteristic Parameter Accessory Resource

10x signal gain
High output amplitude of 80Vp-p (±40V)
Signal amplification bandwidth up to 10MHz
Signal slew rate up to 350V/µs
Extremely low signal distortion
User-configurable options: amplification factor, input impedance, output impedance

（1）标准配置,默认输入输出阻抗均为50Ω，输入阻抗1MΩ仅可用于无反相输出极性
（2）可以订购从x4到x20的自定义增益倍数

名称	版本	发布时间	下载
MT5302 数据手册	1.0	2025-01-17	点击下载
