: MT5110-08 132x32 High-density Switch Matrix Module

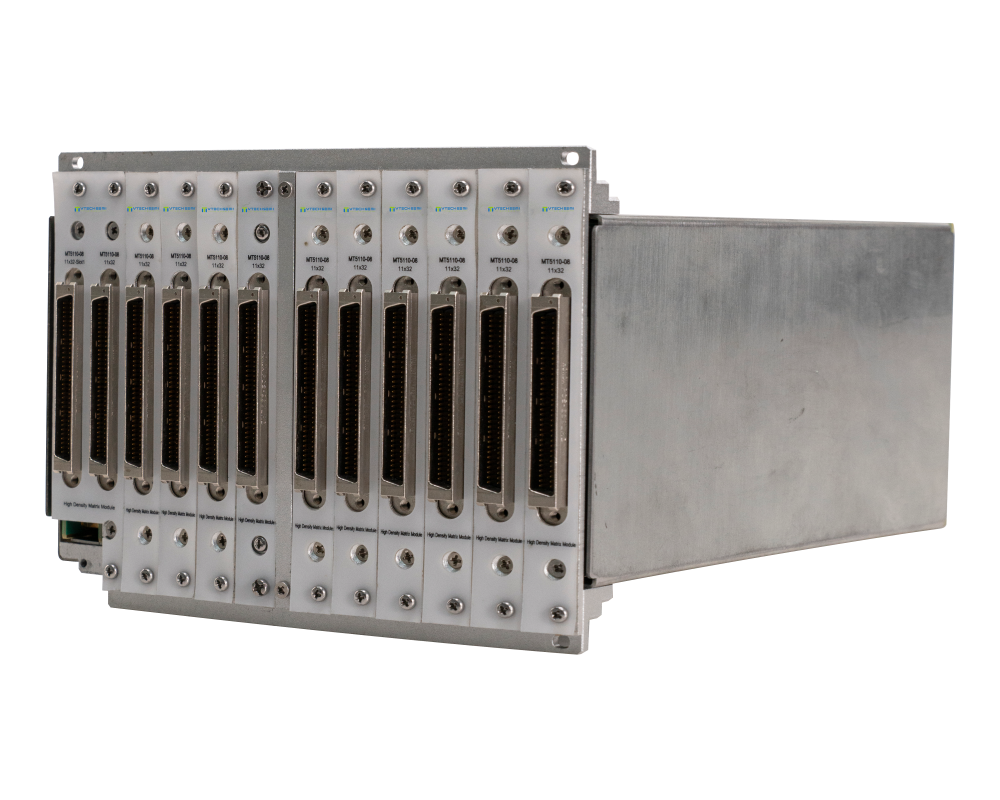

MT5110-08 is a high-density multi-slot matrix module in the form of a standard PXI bus in the MT5110 series. It can insert 12 sub-cards to form a 132X32 high-density matrix.

Apply Manual

Characteristic Parameter Accessory Resource

132x32 High-density Multi-slot Matrix
Switching voltage: 150V, current: 0.5A, power: 10W
With an embedded temperature module, it can monitor the backplane temperature in real time.
It can insert 12 pieces of 3U PXI modules.
It supports the mixed slot form of PXI and PXIe.
It is compatible with operating systems such as Windows and Linux.
With a VISA-based DLL driver, secondary development can be carried out.

名称	版本	发布时间	下载
MT5110-08 驱动	1.0	2025-01-17	点击下载

名称	版本	发布时间	下载
MT5110-08 数据手册	1.0	2024-12-01	点击下载
