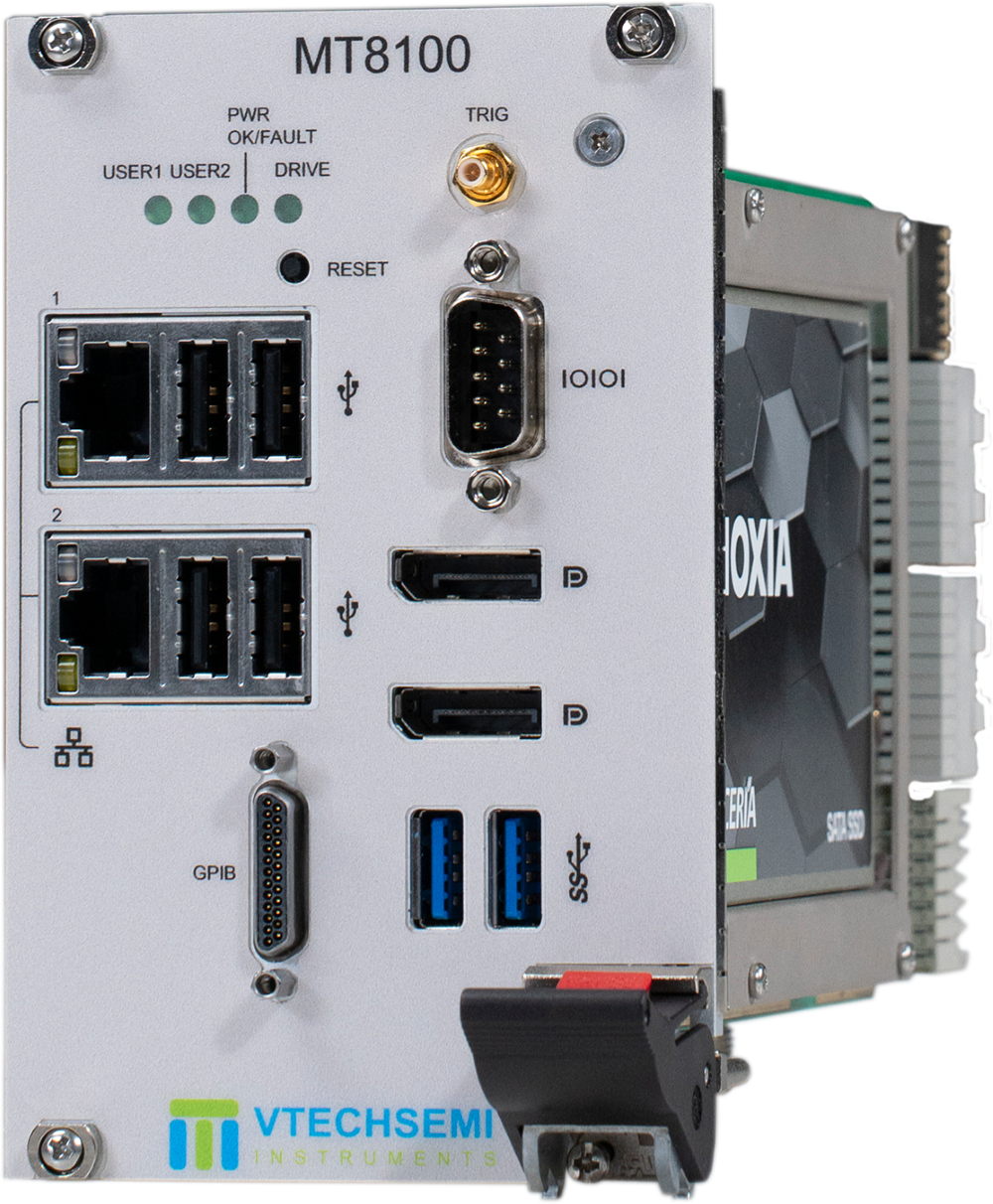

: MT8100 3U PXIe Controller

The MT8100 controller is designed based on the 11th-generation Intel® Core™ i5 processor. It offers high - performance computing capabilities in a compact structure for hybrid test and measurement systems based on the PXI Express bus. It can be used in applications such as processing intensive modular instruments, data acquisition, and image processing.

Apply Manual

Characteristic Parameter Accessory Resource

CPU: Intel® Core™ i5-11500HE
Cache: 12MB Smart Cache
Memory: 8 GB (standard configuration), up to 32 GB supported, with a maximum support for DDR4-3200 MHz frequency
Storage: 512GB SSD (expandable)
Display interfaces: Two DP1.4 display interfaces
Network interfaces: Two 10M/100M/1000M Gigabit Ethernet interfaces
GPIB interface: One Micro-D interface
Serial interface: One RS232 interface
USB interfaces: Four USB2.0 interfaces and two USB3.0 interfaces
Operating systems: Windows 10 and Linux RT

名称	版本	发布时间	下载
MT8100 数据手册	1.0	2025-01-17	点击下载
