MT5301 40Vp-p Small-Signal Amplifier-武汉微泰电子有限公司

Position：Home > Product > PXI/PXIe > PXI Instrument Module

: MT5301 40Vp-p Small-Signal Amplifier

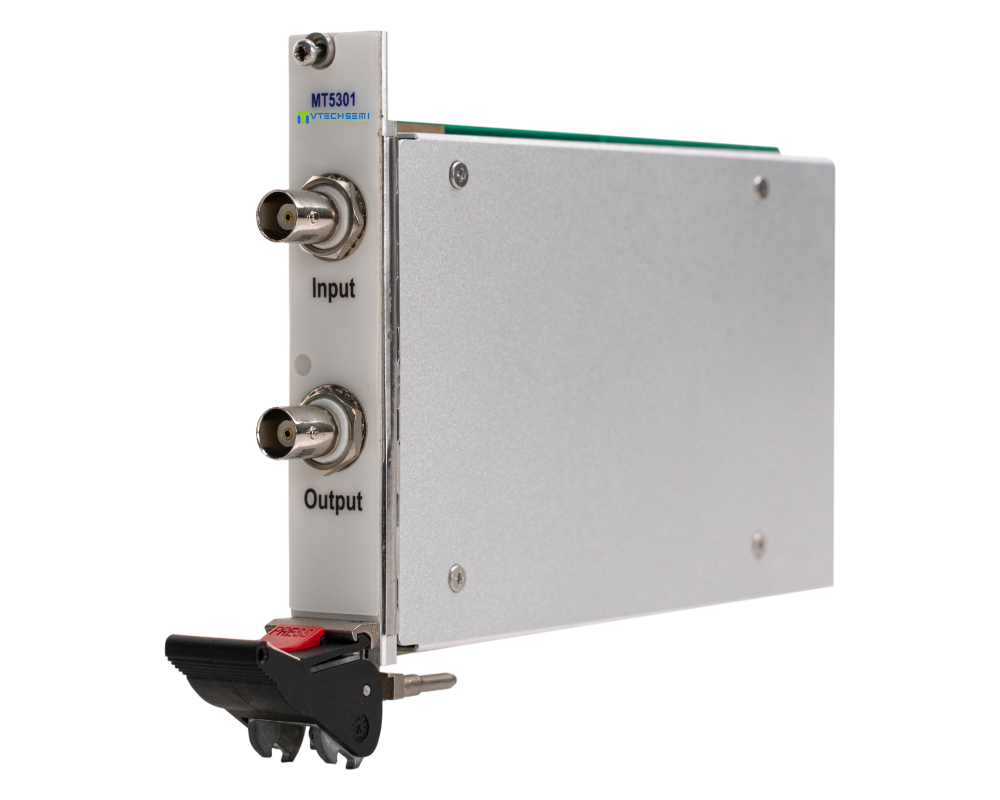

The MT5301 is a high-gain and low-distortion signal amplifier with a standard 3U-4HP structure. It supports user customization of input/output impedance, allows for customized amplification factors, and enables customization of either the in-phase amplification or the anti-phase amplification mode.

Apply Manual

Characteristic Parameter Accessory Resource

10 times signal gain
High output amplitude of 40Vp-p (±20V)
The bandwidth for large-signal amplification can reach up to 20MHz
The bandwidth for small-signal amplification reaches 30MHz
The signal slew rate reaches 500V/µs
Extremely low signal distortion
User-selectable configurations: amplification factor, input impedance, output impedance

（1）标准配置,默认输入输出阻抗均为50Ω，输入阻抗1MΩ仅可用于无反相输出极性
（2）可以订购从x4到x20的自定义增益倍数

名称	版本	发布时间	下载
MT5301 数据手册	1.0	2025-01-17	点击下载
