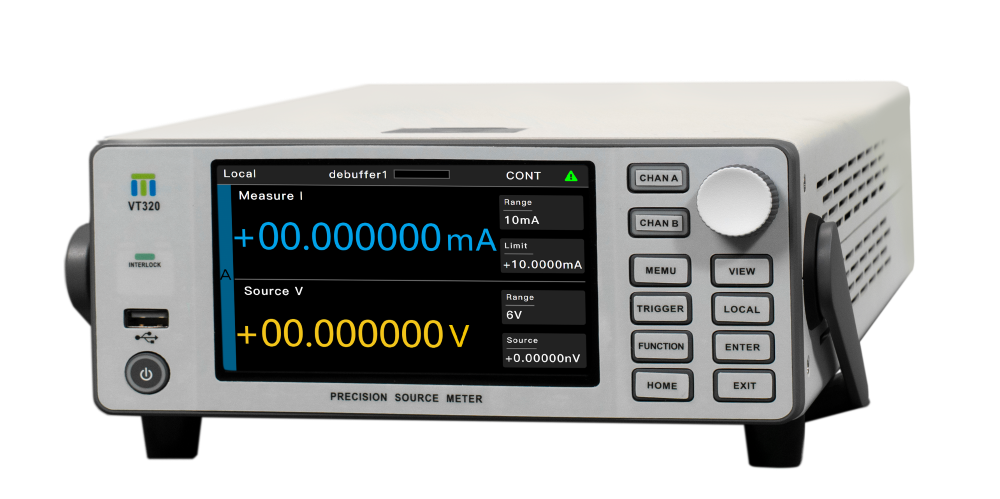

: VT320 Single/Dual-Channel High-Precision Digital Source Meter

The VT320 is a high-precision digital source meter, available in both dual-channel and single-channel options. It integrates multiple functions such as a precision voltage source, current source, voltmeter, ammeter, electronic load, ohmmeter, and power meter, meeting diverse testing requirements. It is equipped with a 5-inch touchscreen for convenient operation. With a high resolution of 10fA, it provides assistance for the testing of semiconductor devices, passive devices, and sensors.

Apply Manual

Characteristic Parameter Accessory Resource

The high-precision digital source meter features four-quadrant output.
It enables high-speed measurement with a sampling rate of 1.8 MS/s and supports user-defined PLC.
The voltage range is ±200V with a voltage sensitivity of 100nV.
The current range is ±1A (DC) and ±3A (pulse) with a current sensitivity of 10fA.
Equipped with multiple communication interfaces, it supports USB2.0, LAN, RS232, and GPIB.
The front-mounted USB enables functions such as data storage and online upgrade.
Furnished with a 5 - inch high - resolution touch screen, which supports online measurement functions for I/V, I/t, and V/t characteristics.

名称	版本	发布时间	下载
VT320 数据手册	1.0	2025-01-17	点击下载
