: MT5160 22-channel Fault Injection Switch Module

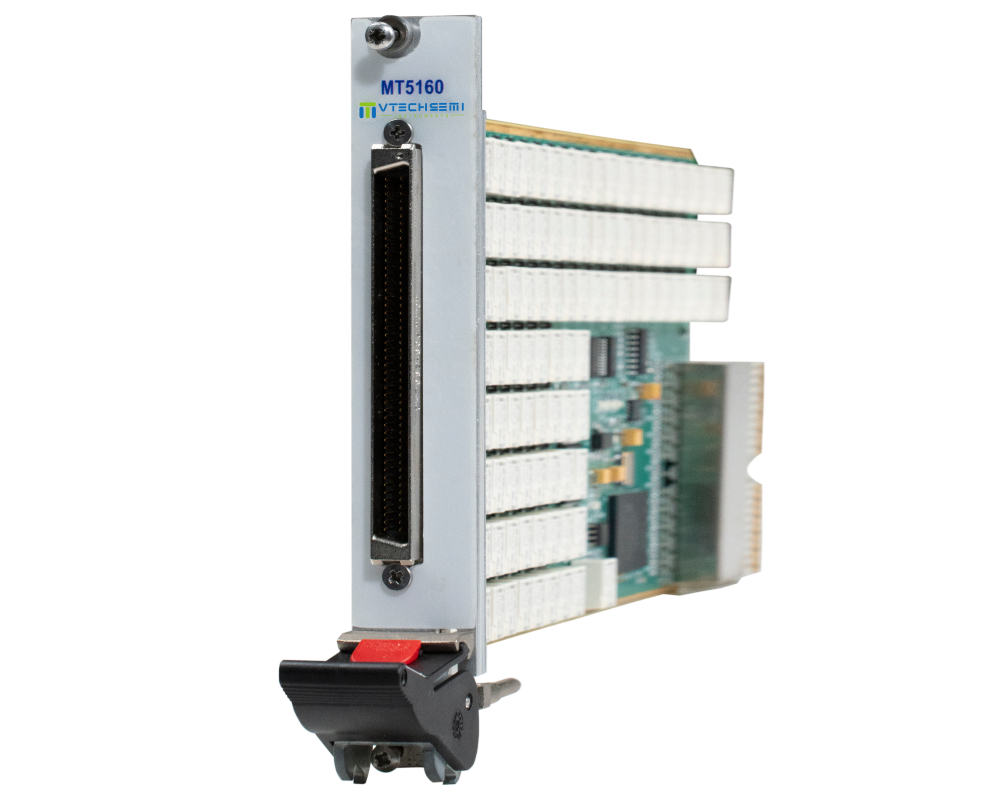

The MT5160 is a standard PXI 3U-4HP structured 22-channel fault injection switch module, which includes 22 channels and 8 external "fault" input paths. Each channel contains 2 pairs of "input-output" links. Currently, every 3 channels share one external "fault" input path, and the last channel has a separate external "fault" input path, which is used for testing to simulate the influence of various faults on signals.

Apply Manual

Characteristic Parameter Accessory Resource

22 channels and 8 "fault" injection paths.
Each channel contains 2 pairs of "input - output" and one "fault" injection path.
The single - way switch supports a maximum of 150VDC and 60W power.
It supports 1A hot - switching/cold - switching.
It supports a mixed slot form of PXI and PXIe.
It supports operating systems such as Windows and Linux.
Based on the VISA DLL driver, it allows for secondary development.

名称	版本	发布时间	下载
MT5160 驱动	1.0	2025-01-17	点击下载

名称	版本	发布时间	下载
MT5160 数据手册	1.0	2025-01-17	点击下载
