X5141 Non-standard 8x50/16x50 RF Switch Matrix Module

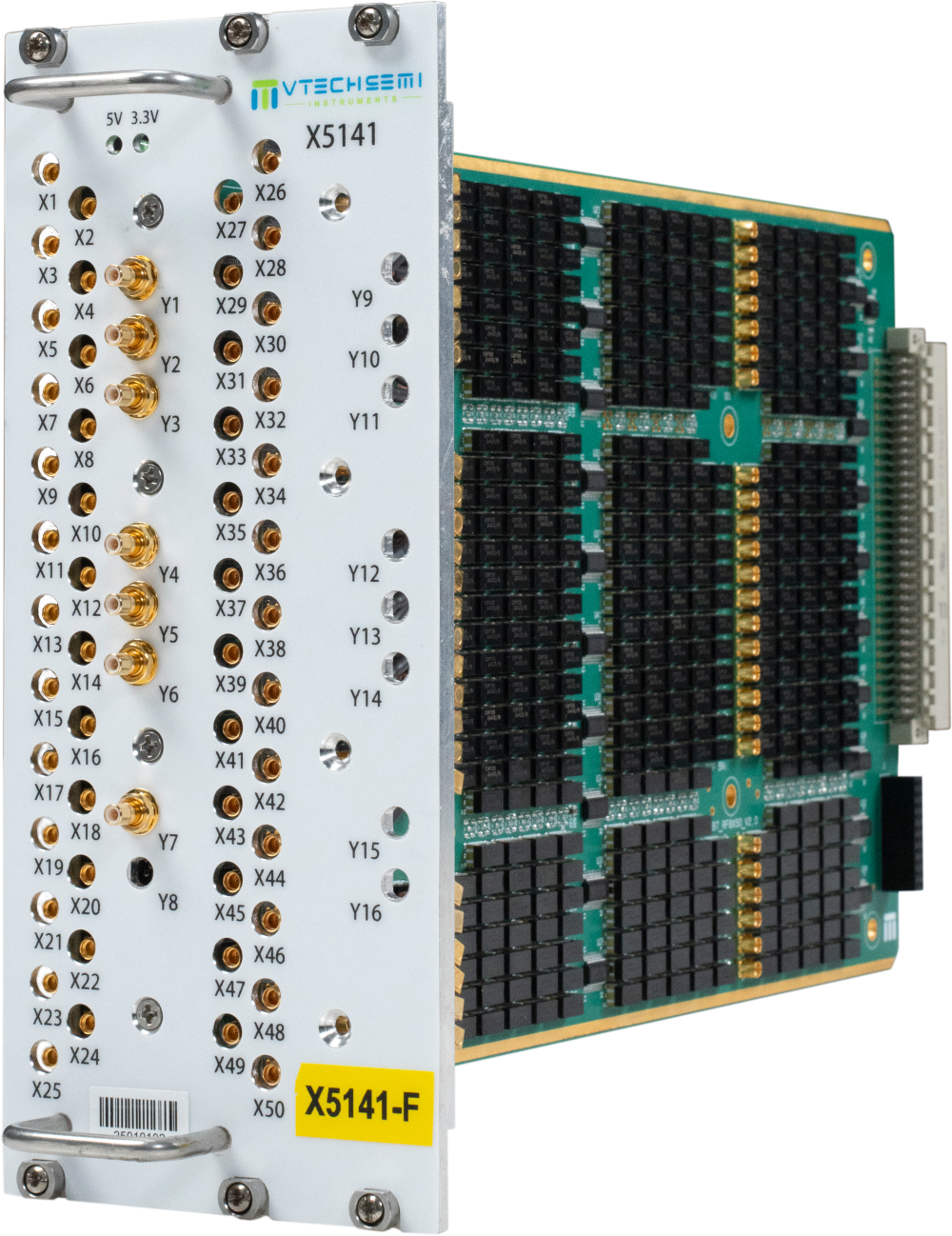

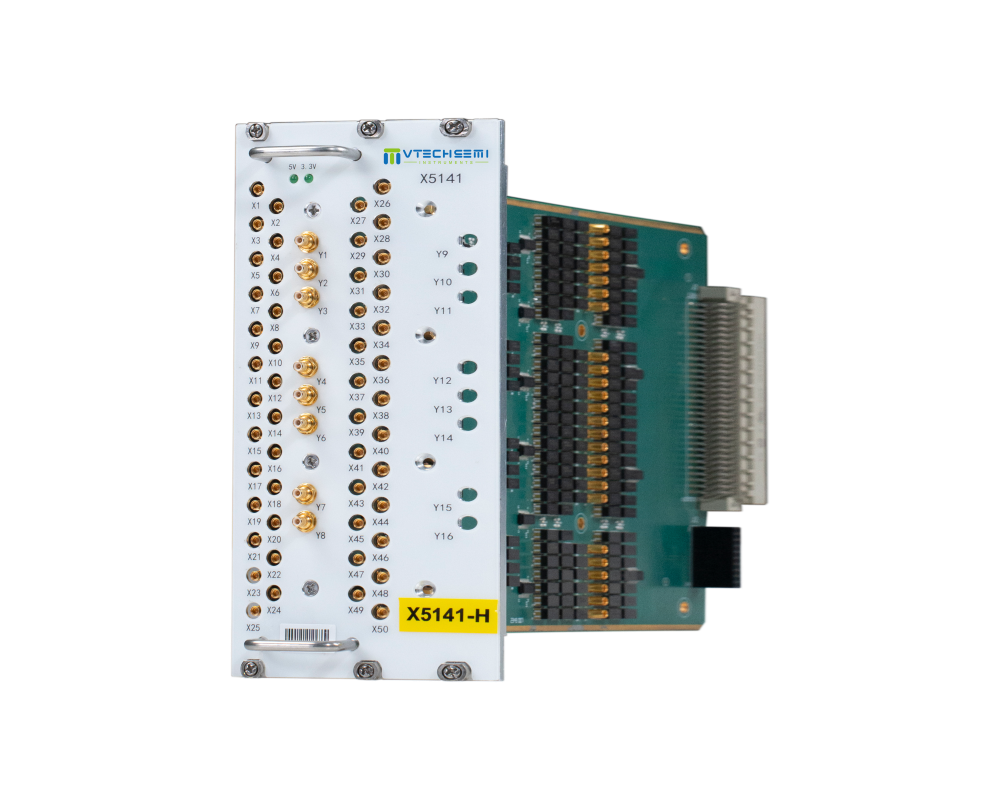

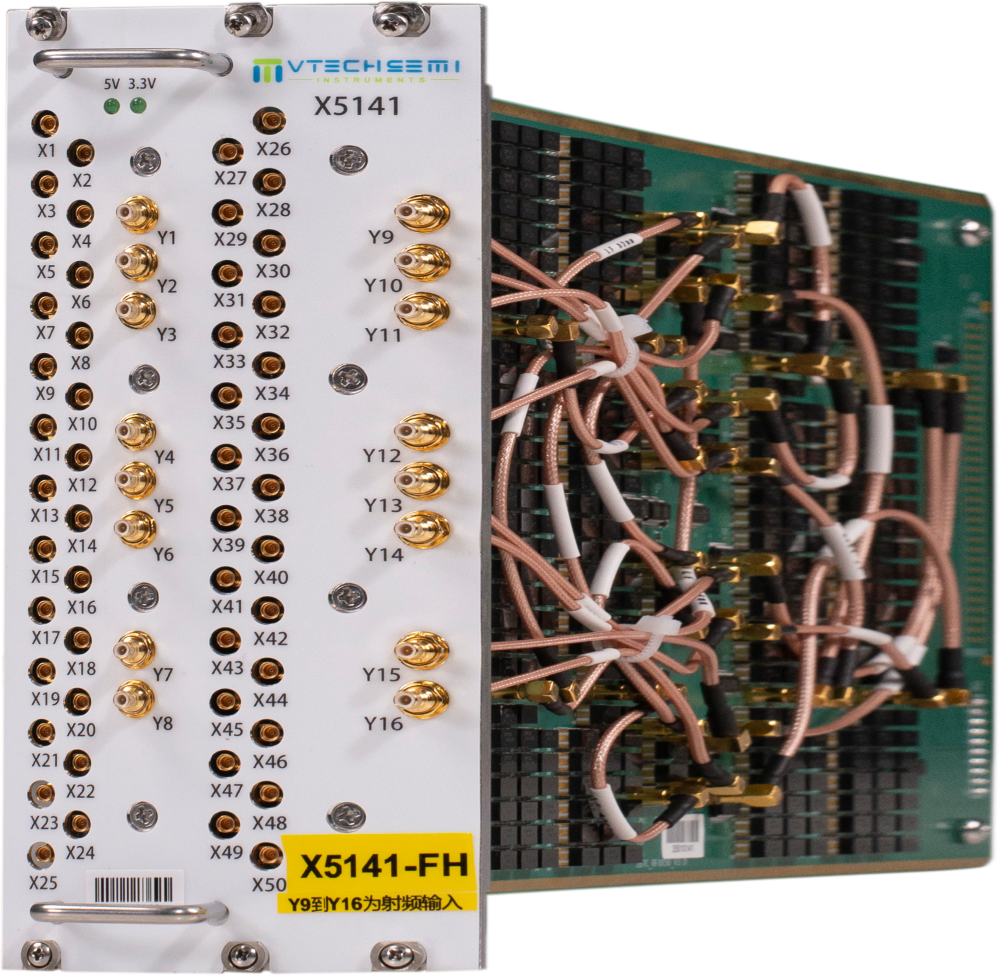

The X5141 is a non-standard RF switch matrix module with a matrix scale of 8x50/16x50. It is divided into two types of boards, ZB7 and ZB7C. The ZB7 is mainly used for I-V or C-V testing, while the ZB7C is mainly used for C-V or RF testing. Different product models can be formed through the combination of either one or both of them. For example, X5141-F (ZB7 motherboard), X5141-H (ZB7C motherboard), X5141-FH (ZB7 motherboard + ZB7C daughter board), etc. The characteristic impedance is 50Ω, and the available bandwidth for RF testing is 200MHz.
