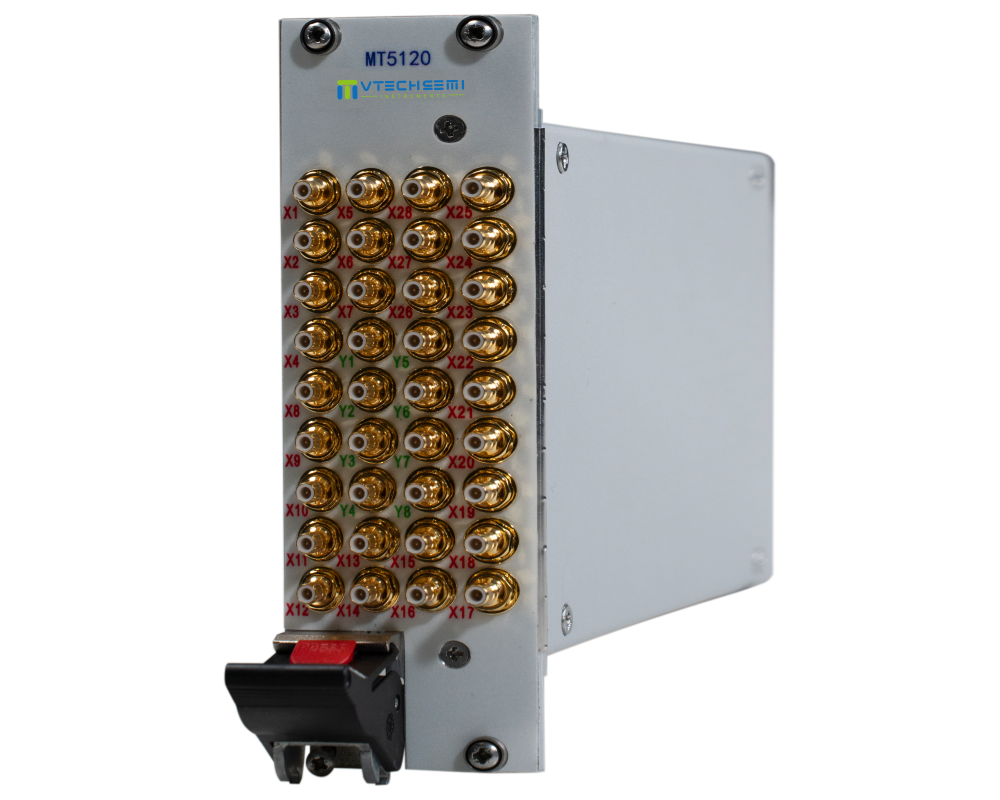

MT5120 8x28 Radio Frequency Switch Matrix Module

MT5120 is an 8x28 RF switch matrix module in the form of a standard PXI bus. The row channels are Y1⁓Y8, and the column channels are X1⁓X28. Users can control the isolation switches between each channel in the switch matrix through the host computer software, etc., to achieve the conduction or disconnection between any row channel and column channel. The channel bandwidth is 150 MHz. The product features high channel density and a compact structure.
